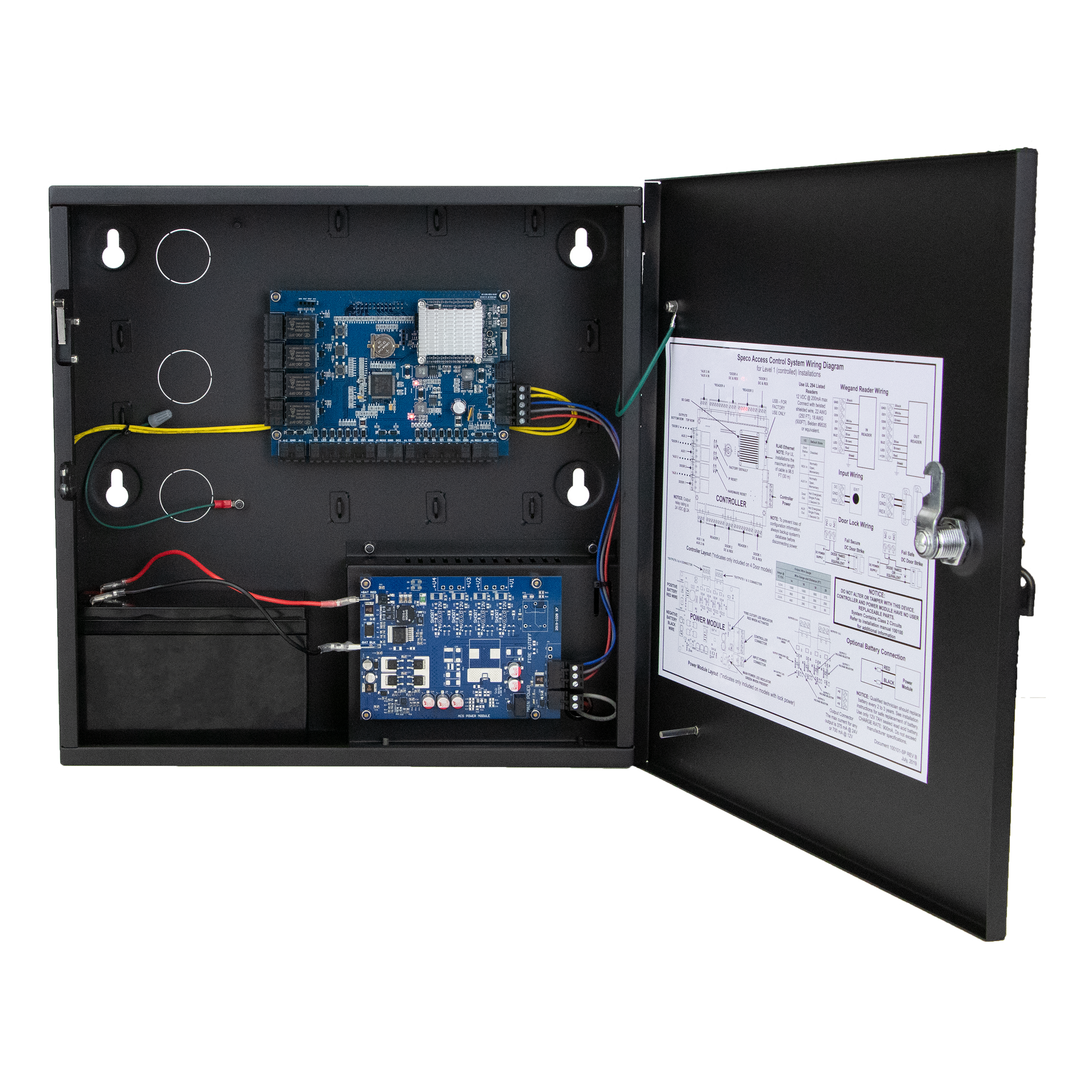

SPECO 2 TO 4 DOOR W/PWR PK
Product Info
2 TO 4 DOOR WITH POWER PACKAGE
Features
Expandable up to 4 doors (when used with A2M board)
Out of the box ready browser managed
Available on all browsers
Embedded Linux operating system
ETL-listed (in accordance with UL-294 standard for Access Control System Units)
5 year warranty
*Backup Battery Not Included
Specifications
Processor – Quad Core Cortex, 1.5 GHz
Memory – 1GB DDR3 & 8GB eMMc
Operating System – Embedded Linux
Transactions – > 45 per second
System Power Requirements – 115VAC @ 1.5A
Operating Temperature – 50°F to 95°F (10°C to 35°C)
Enclosure Size (W x H x D) – 14.25 × 14.25 × 3.75in (362 × 362 × 95mm)
Internal Power Supply – Controller, Readers & 12V and 24V DC for Door Locks
Lock Power Output – 375mA 24V, 700mA 12V
Battery Backup – Controllers, Readers, & Door Lock
Recommended Battery Type (battery is not included) – Powersonic PS-1270-FI or Similar 12V, 7AH, Sealed Lead Acid with 0.187 inch terminals
Standby Power Requirement – 450mA @ 12V
Readers (Wiegand) – 4 Total, One In & One Out Reader for Each Door
Reader Power – 300mA 12V Max per Reader, 1000mA 12V Max per System
Request to Exit (REX) Inputs – 2 Total, One for Each Door
Door Position (status) Inputs – 2 Total, One for Each Door
Auxiliary Input – 2 Total, General Purpose
Tamper Digital Input – Yes, Prewired on Units with Integrated Power
Power Fault Digital Input – Yes, Prewired on Units with Integrated Power
Door Lock Outputs – 2 Form C Relay, 24V @ 2.0A
Auxiliary Outputs – 2 Form C Relay, 24V @ 2.0A
